Low-Voltage 200-Watt Metal Landscape Lighting Transformer

Choose a Safe Location: Mount the transformer on a wall at least 12 inches (30 cm) above the ground and no closer than 10 feet (3 m) from a pool, spa, or fountain . Use a GFCI Outlet: The transformer must be plugged into a weatherproof GFCI (Ground Fault Circuit Interrupter) outlet to protect against electrical shock . Use Correct Cable: Always use a low-voltage landscape lighting cable that is rated for direct burial, with a minimum gauge of 16 or 12 AWG for longer runs to handle the load safely . Respect the Load Limit: Do not exceed the transformer's 200-watt maximum. Check the total wattage of all your light bulbs and leave a 20-30% buffer (e.g., use no more than 160W) to ensure stable operation and extend the unit's lifespan . Leave a Service Loop: Keep a small coil of extra wire near the transformer and after the last light fixture. This makes future adjustments or repairs much easier . 🏆 Product Recommendations To help you get started, here are a few popular models available on the market: DEWENWILS 200W Metal Transformer: A strong all-around choice for most homeowners. It features a durable metal case, an integrated photocell and timer, and offers multi-tap outputs (12V/14V) . Its simple, one-button interface makes setup straightforward. VEVOR 200W Landscape Transformer: An excellent option if you want to control different areas separately. It features three independent output zones, each with its own programmable timer and photocell, allowing for complex lighting schedules . Kichler 200W Plus Series Transformer: This is a professional-grade choice known for its reliability and durability. While it doesn't come with a built-in timer, it is highly compatible with a wide range of Kichler's smart controls, timers, and photocells that you can add on, and it is backed by a 10-year warranty . Winshine PTS200 Stainless Steel Transformer: Built to last in harsh environments with its 304 stainless steel enclosure, this model is designed for professional installations. It features multi-tap outputs (12V/15V) to easily manage long wire runs and minimize voltage drop . To summarize, start by totaling the wattage of all your light fixtures to ensure they don't exceed the 200W capacity . Then, choose the control features—such as a built-in timer, photocell sensor, or multiple zones—that best match how you want your system to operate . I hope this helps you find the perfect transformer for your project. Do you already have a set of lights in mind, or would you like some help calculating the total wattage?

• ‌Safety – Mount 12" above ground and use a GFCI outlet for weatherproof protection.

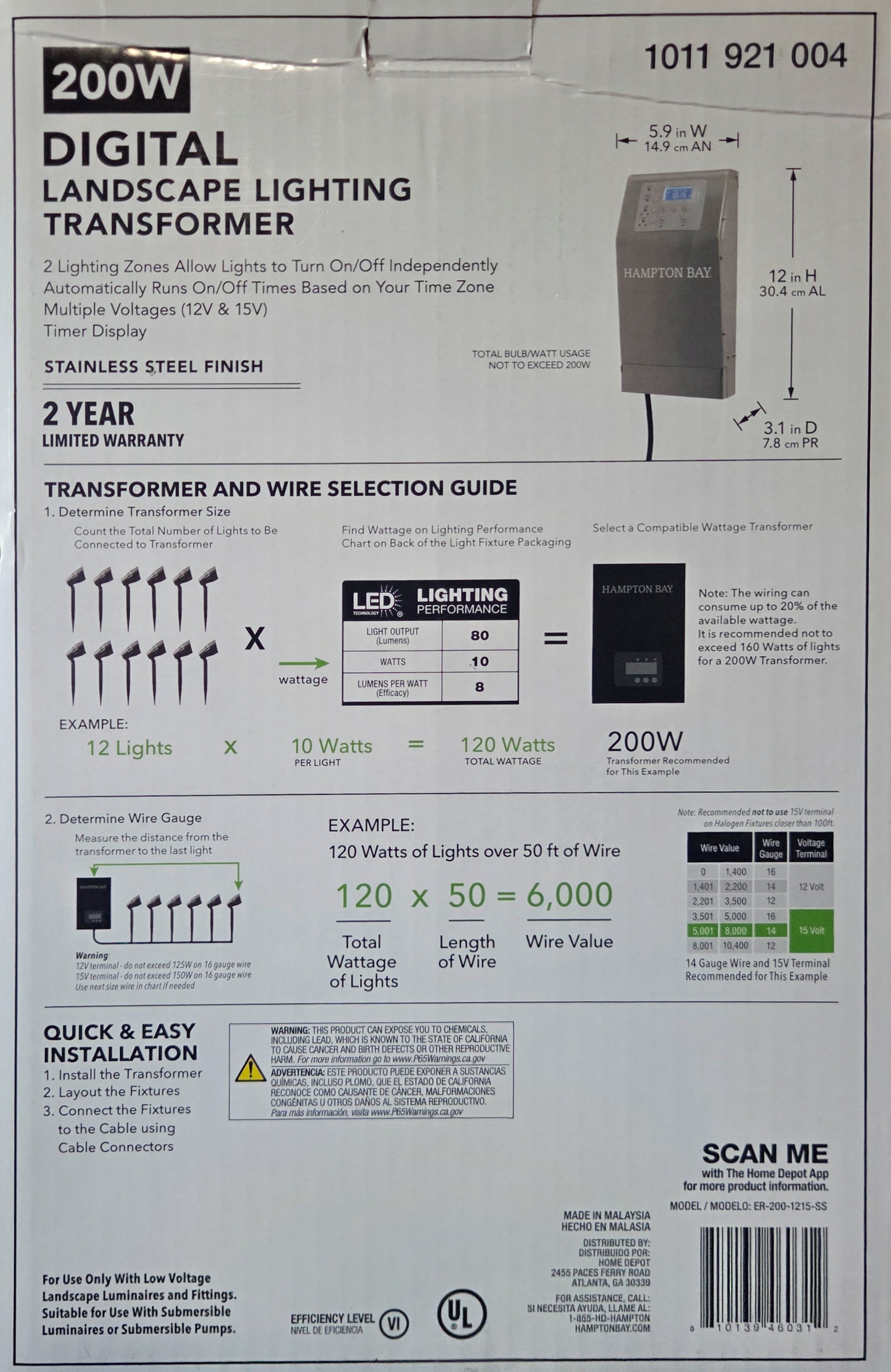

• Load – Stay below 200W; keep a 20-30% buffer (max 160W) for reliable operation.
• Voltage – Multi-tap outputs (12V–15V) prevent voltage drop on long wire runs.
• Controls – Dusk-to-dawn sensors, timers, and multiple zones offer automated, flexible scheduling.
