20FW Adsorption Dryer Air Compressor Double Cylinder Structure Dryer Water and Oil Removal Filter

Product Overview: <br>Thermal-free adsorption compressed air dryer is a kind of equipment for drying compressed air according to the principle of pressure change adsorption. The air drying process is automatically controlled by the YX intelligent controller using advanced microcomputer technology to improve the air purification efficiency and reduce the power loss. <br>This series of dryers is widely used in electronics, food, metallurgy, electric power, chemical industry, petroleum, medicine, light textile, tobacco, instrument, automatic control and other industries. <br> <br>Product Parameter: <br>Treated air volume: 2.5 m3/min <br>Inlet and outlet dimensions: 1 inch threaded pipe <br>Bobbin size: 159mm*1080mm <br>Individual barrel volume: 0.053m³ <br>Power: 1000W <br>No thermal gross weight: 405LBS (184KG) <br>Adsorbent weight: 165LBS (75KG) <br>Air consumption: ≈8％ <br>Voltage: 110V <br>Withstand voltage: 1.0Mpa <br>Working pressure: 0.4-1.0Mpa <br>System pressure drop: ≤0.03Mpa <br>Adsorbent: Aluminium oxide（3-5mm） <br>Dew point temperature: -20℃ to -40℃ <br>Switching cycle: 60Min（adjustable） <br>Control mode: PLC <br>Intake temperature: ≤45℃ <br>Intake oil content: ≤0.1PPM <br>Suppressor: 2PCS of XY-05 <br>Diffuser: 4PCS of DN25 <br>Normally open valve: Pneumatic valve of DN25 <br>Normally closed valve: Pneumatic valve of DN15 <br> <br>Installation: <br>1. Users shall construct and install it according to the foundation drawing. <br>2. Pay attention to the verticality of the cylinder when installing the equipment. <br>3. The equipment shall be fastened and tightened after a period of use. <br>4. Connecting inlet and exhaust pipes, filter and efficient oil remover should be as close as possible. <br>5. In order to ensure safety, non-safe voltage electrical parts shall be effectively grounded. <br>6. The muffler shall be connected to the outside room. <br> <br>Please note: <br>This machine does not have a power cord, you need to ask the electrician to connect it to the power supply. <br> <br>Item Included(033277-SunY): <br>30FW Adsorption dryer Air Compressor Dryer 110V

• 【Widely Application】This is a no-heat adsorption compressed air dryer. Aluminum oxide is used as adsorbent. The air dryer is used for removing moisture, oil and particle impurities from compressed air. Ideal for wide applications in electronics, food processing, and medical industries etc.

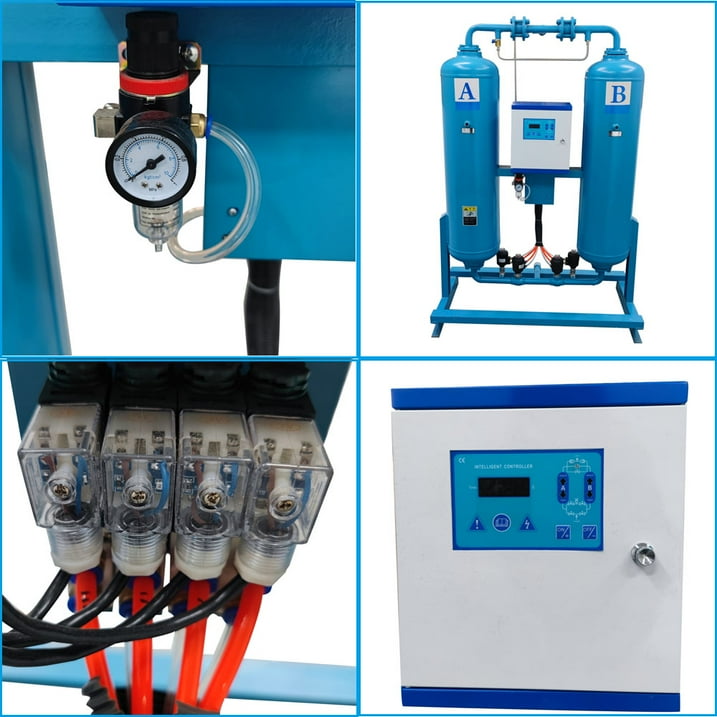

• 【Programmable Controller】This machine adopts the advanced monolithic microcomputer technology, the running state is displayed visually, and the running time is displayed by the digital tube. A series of anti-interference measures are adopted inside the machine, which have high reliability in the industrial field operation. This machine is designed to be programmed, and the user can adjust and program the working cycle accordingly.
• 【Advantages】The air drying process is automatically controlled by the YX intelligent controller using advanced microcomputer technology to improve the air purification efficiency and reduce the power loss. Environmental protection and energy saving, efficient water removal.

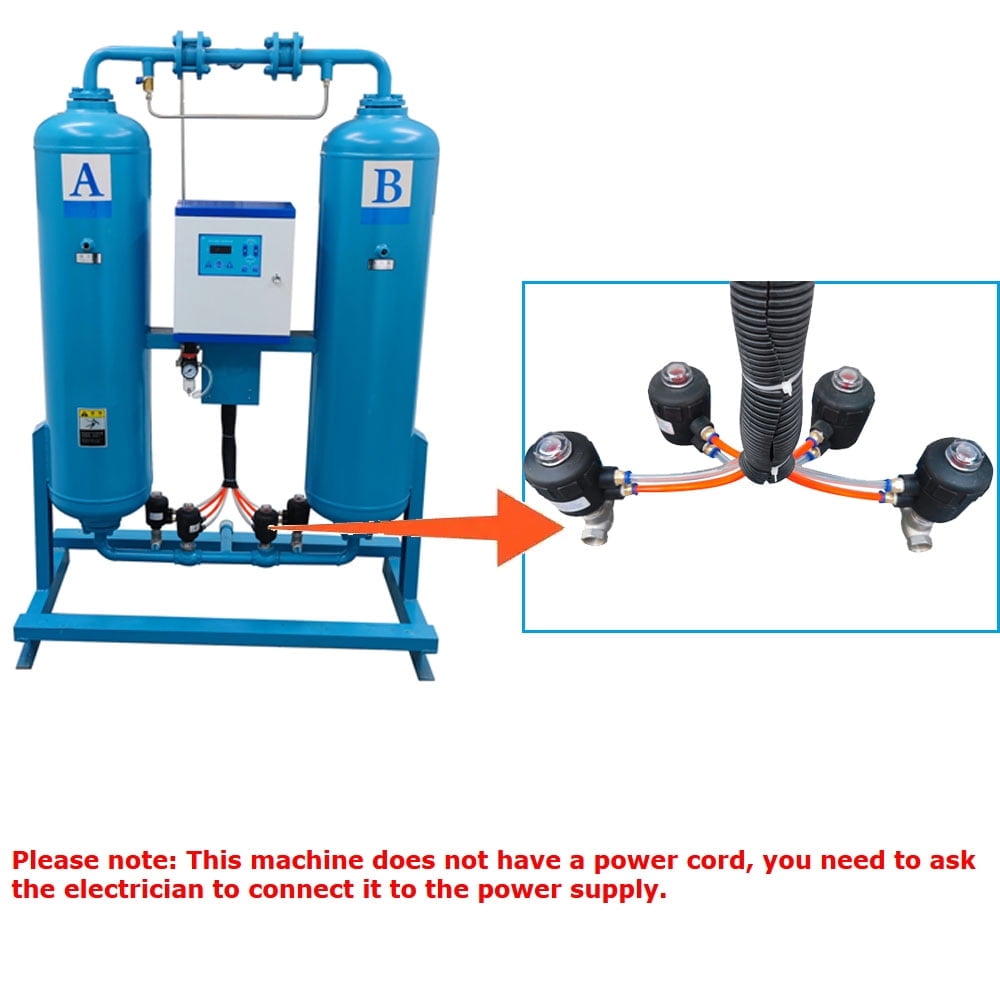

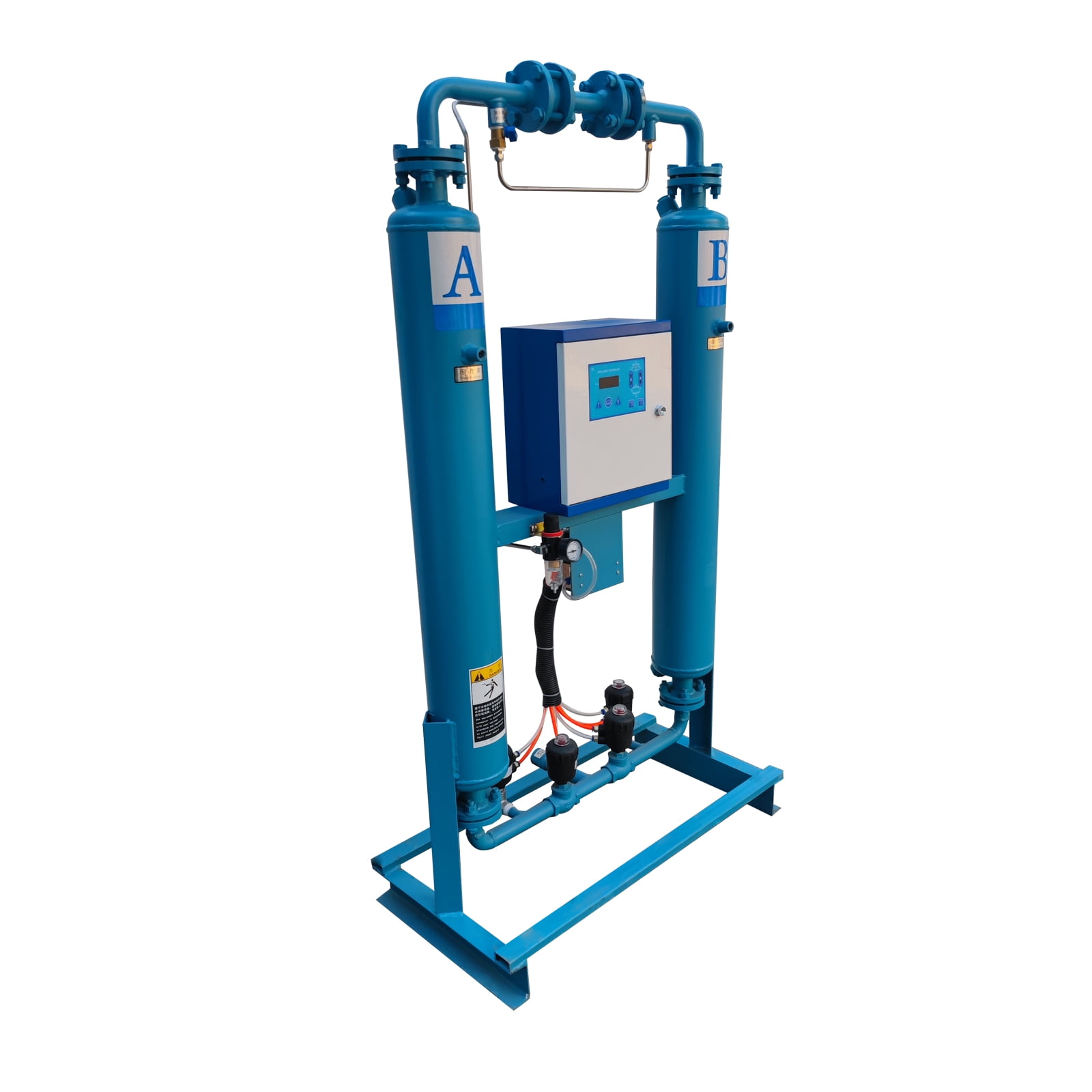

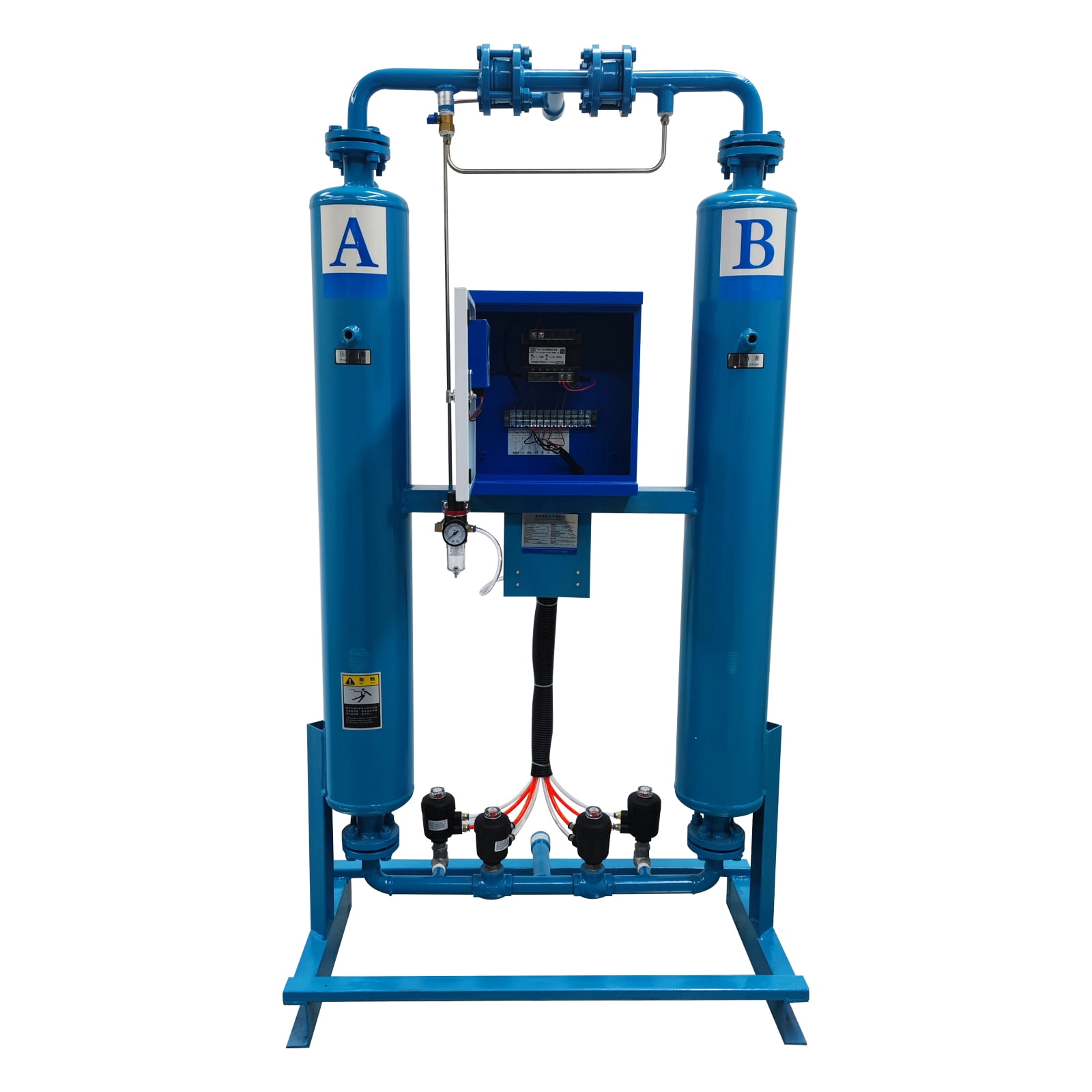

• 【Double Cylinder Structure】The dryer is a double cylinder structure and the cylinders are filled with adsorbent. When one adsorption cylinder is in the drying process, another adsorption cylinder is in the desorption process. At low temperature or high pressure, water is adsorbed (work), and water is desorbed at high temperature or low pressure (regeneration).
• 【Parameter】This 110V adsorption dryer provides industrial performance with 2.5m³/min treated air volume and -20°C to -40°C dew point temperature.
